Just made up a mash tun copper manifold. Do i need to give it a clean with something like soda crystals? Also should i ignore the burrs inside the tubes where i cut the draining slits (it would be bit awkward to remove them).
many thanks
Cleaning mash tun manifold
- Pinto
- Falling off the Barstool
- Posts: 3443
- Joined: Sat Mar 17, 2012 4:09 pm
- Location: Rye, East Sussex
Re: Cleaning mash tun manifold
Mine is just pressed together so it comes apart with ease for cleaning. On that front, all I do is use some of the hot discharge water from my CFC when cooling the brew and a little soak in unfragranced oxi powder, then rinse and leave ready for the next brew.
Primary 1: Nonthing
Primary 2 : Nothing
Primary 3 : None
Secondary 1 : Empty
Secondary 1 : None
DJ(1) : Nowt
DJ(2) : N'otin....
In the Keg : Nada
Conditioning : Nowt
In the bottle : Cinnamonator TC, Apple Boost Cider, Apple & Strawberry Cider
Planning : AG #5 - Galaxy Pale (re-brew) / #6 - Alco-Brau (Special Brew Clone) / #7 Something belgian...
Projects : Mini-brew (12l brew length kit) nearly ready
Join the BrewChat - open minds and adults only
- Click here
Primary 2 : Nothing
Primary 3 : None
Secondary 1 : Empty
Secondary 1 : None
DJ(1) : Nowt
DJ(2) : N'otin....
In the Keg : Nada
Conditioning : Nowt
In the bottle : Cinnamonator TC, Apple Boost Cider, Apple & Strawberry Cider
Planning : AG #5 - Galaxy Pale (re-brew) / #6 - Alco-Brau (Special Brew Clone) / #7 Something belgian...
Projects : Mini-brew (12l brew length kit) nearly ready

Join the BrewChat - open minds and adults only

-
- Hollow Legs
- Posts: 479
- Joined: Sun Oct 11, 2009 9:09 pm
- Location: spitting distance of the Beacon hotel, home of Ruby red
Re: Cleaning mash tun manifold
Thanks pinto, i didn't know if it needed a good soak in something before i start using it. I've got some oxi somewhere i'll do that.
-
- Telling imaginary friend stories
- Posts: 5229
- Joined: Sun Oct 16, 2011 1:49 pm
- Location: Cowley, Oxford
Re: Cleaning mash tun manifold
post build clean off the grease n sweat with oxi but after use a good rinse and dry is all thats needed imho.. to de-burr the tubes get a flat blade screw driver n rattle it arround inside the tube to knock off the burrs..
ensuring its bone dry b4 storage is way more important than cleaning with chemicals..
ensuring its bone dry b4 storage is way more important than cleaning with chemicals..
ist update for months n months..
Fermnting: not a lot..
Conditioning: nowt
Maturing: Challenger smash, and a kit lager
Drinking: dry one minikeg left in the store
Coming Soon Lots planned for the near future nowt for the immediate
Fermnting: not a lot..
Conditioning: nowt
Maturing: Challenger smash, and a kit lager
Drinking: dry one minikeg left in the store
Coming Soon Lots planned for the near future nowt for the immediate

- Monkeybrew
- Telling everyone Your My Best Mate
- Posts: 4104
- Joined: Wed Apr 13, 2011 9:53 pm
- Location: Essex
Re: Cleaning mash tun manifold

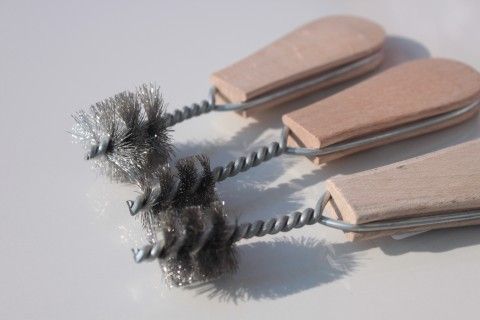

My manifold is quite long, so I cut the handle off of one of these, and attached it to a piece of wire and kept pulling it through my manifold tubes to remove the loose burrs.

I also line my mash tun with a piece of voile which stops all of the grain getting into my manifold, because it was a complete ba$tard to clean.
Cheers
MB

I also line my mash tun with a piece of voile which stops all of the grain getting into my manifold, because it was a complete ba$tard to clean.
Cheers
MB
FV:
Conditioning:
AG#41 - Vienna Lager - 5.6%
AG#42 - Heritage Double Ale - 10.5%
On Tap:
AG#44 - Harvest ESB - 5.4%
AG#45 - Amarillo Gold APA - 5.2%
Conditioning:
AG#41 - Vienna Lager - 5.6%
AG#42 - Heritage Double Ale - 10.5%
On Tap:
AG#44 - Harvest ESB - 5.4%
AG#45 - Amarillo Gold APA - 5.2%
Re: Cleaning mash tun manifold
I removed the burs to stop them ending up in the brew, any bits would settle out, but better not to get them there in the first place. I used a rat tail file, held the file firm and worked the pipe up and down occasionally rotating.
Re: Cleaning mash tun manifold
I always clean my copper manifold with citric acid . No problem just soak for a few hours then rinse.
-
- Lost in an Alcoholic Haze
- Posts: 645
- Joined: Wed Jan 02, 2008 6:39 pm
- Location: Peoples Republic of Dudley
Re: Cleaning mash tun manifold
Mine is also a push together afair, if slightly pinch the tubes, it make a tight fitting into the elbows +1 for cirtic acid, cheap and very effective.
