120L Boiler - Element Advice?

[floydmeddler]

I've just bought this: http://www.screwfix.com/p/copper-immers ... t-14/40634

Plan is to install in into my HLT. Have removed the thermostat which was easy enough. Have just realised that it states 15A on the thermostat. Does this mean I can't use it in the garage? Grrrrrrrrrr... Things are never simple...

[sparky Paul]

I was under the impression UK rms voltage is 230V

Whilst it does vary a bit, supply voltage in the UK is 240V, and will be for the foreseeable future. All UK infrastructure (i.e. sub-station transformers) kick out 240V and can't be altered, the actual average supply voltage in mainland UK is just over 240V, and just under in NI. UK elements are rated at 240V.

The old UK standard was 240V ±10%, the 230V -6%/+10% figure is a fudge to 'harmonise' the various EU supply voltages, although nothing on the ground actually changed.

[sparky Paul]

I've just bought this: http://www.screwfix.com/p/copper-immers ... t-14/40634

Plan is to install in into my HLT. Have removed the thermostat which was easy enough. Have just realised that it states 15A on the thermostat. Does this mean I can't use it in the garage? Grrrrrrrrrr... Things are never simple...

3KW 240V rated Immersion heaters take 12.5A, the stat has to have a bit of leeway to accomodate the top end of the possible supply voltage range.

[floydmeddler]

All good then. Cheers fellas!

[simon12]

Its not much help but most of Europe used to be on 220V and the UK used to be on 240V this was harmonised to 230V +/- 10% across Europe with the UK supply now officially 230V +10%-6% but no country actually changed anything as there previous supplies are all within the spec of the new standard. As a result all appliances designed for use in Europe are designed to run on 230V so tend to burn out quicker in the UK as they are run on 240V and heaters are cooler in most of Europe as they are running on 220V.

[floydmeddler]

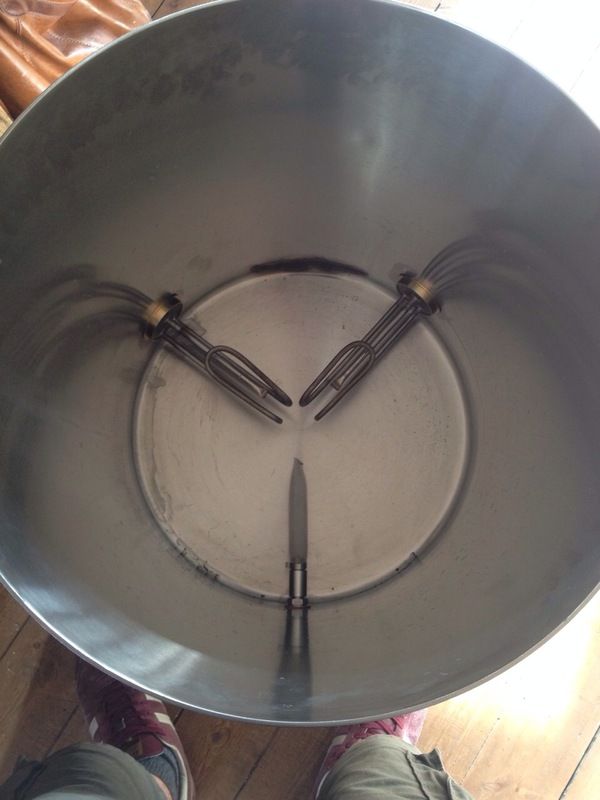

All wired up



Went for 2 Screwfix 11" 3W immersion elements: http://www.screwfix.com/p/11in-incoloy- ... ater/53389

Haven't water tested it yet but am pretty certain it's water tight. Used a 65mm Qmax hole punch to cut the hole. Man that's a serious bit of kit. Loved using it. Befuddler kindly sold me all the bits that I needed. Cheers Befuddler! Really happy with the job.

What grade/type of wire should I use to wire the elements up?

Cheers!

[themadhippy]

What grade/type of wire should I use to wire the elements up?

1.5mm 3 core butyl rubber flex, if its going more than a few meters use 2.5mm

[BenB]

What's the density on those bad boys? Seems a bit compact for that many watts.... might get a bit scorchio.... hopefully not though...

[floydmeddler]

What grade/type of wire should I use to wire the elements up?

1.5mm 3 core butyl rubber flex, if its going more than a few meters use 2.5mm

Cheers bud!

[floydmeddler]

What's the density on those bad boys? Seems a bit compact for that many watts.... might get a bit scorchio.... hopefully not though...

Hey Ben. I'm a bit of a novice with this kind of thing... just good at following instructions. What do you mean by 'density'?

Cheers

[JamesF]

I was under the impression UK rms voltage is 230V

Whilst it does vary a bit, supply voltage in the UK is 240V, and will be for the foreseeable future. All UK infrastructure (i.e. sub-station transformers) kick out 240V and can't be altered, the actual average supply voltage in mainland UK is just over 240V, and just under in NI. UK elements are rated at 240V.

Ours used to hover around 245V. When Western Power replaced the local 11kV overhead supply three or four years ago they also replaced the transformers and as they had to reconnect everything I talked them into reducing our supply voltage to nearer 240V at the same time.

James

[floydmeddler]

themadhappy, this stuff OK? Good price compared to Ebay!
https://www.tlc-direct.co.uk/Products/C ... ash50.html

Also, are these plugs suitable?
https://www.tlc-direct.co.uk/Products/TLRPT13W.html

Cheers!

[themadhippy]

cables ok,as for the plugs https://www.tlc-direct.co.uk/Products/MK0646.html would be my choice,however youd be better off getting some 16A ceeforms fitted

[floydmeddler]

Cheers! I'll go for those.

One final thing... I'd like to be able to connect/disconnect easily for cleaning. These seem suitable to me.

http://www.ebay.co.uk/itm/191598173594? ... EBIDX%3AIT

What do you think? I can't find them anywhere that's UK based sadly...

Cheers

[floydmeddler]

Unless...

https://www.tlc-direct.co.uk/Products/G ... ash3P.html

and

https://www.tlc-direct.co.uk/Products/G ... ash3C.html

Could be more suitable...
