hop filter

Post by danb » Mon Feb 17, 2014 9:14 pm

The run off from my boiler is really slow, it took about 40 minutes on the last brewday. I currently have an l shape copper pipe with around 80 3mm holes in it. It worked fine for the first 3 batches but the last 2 have been awful and slow.

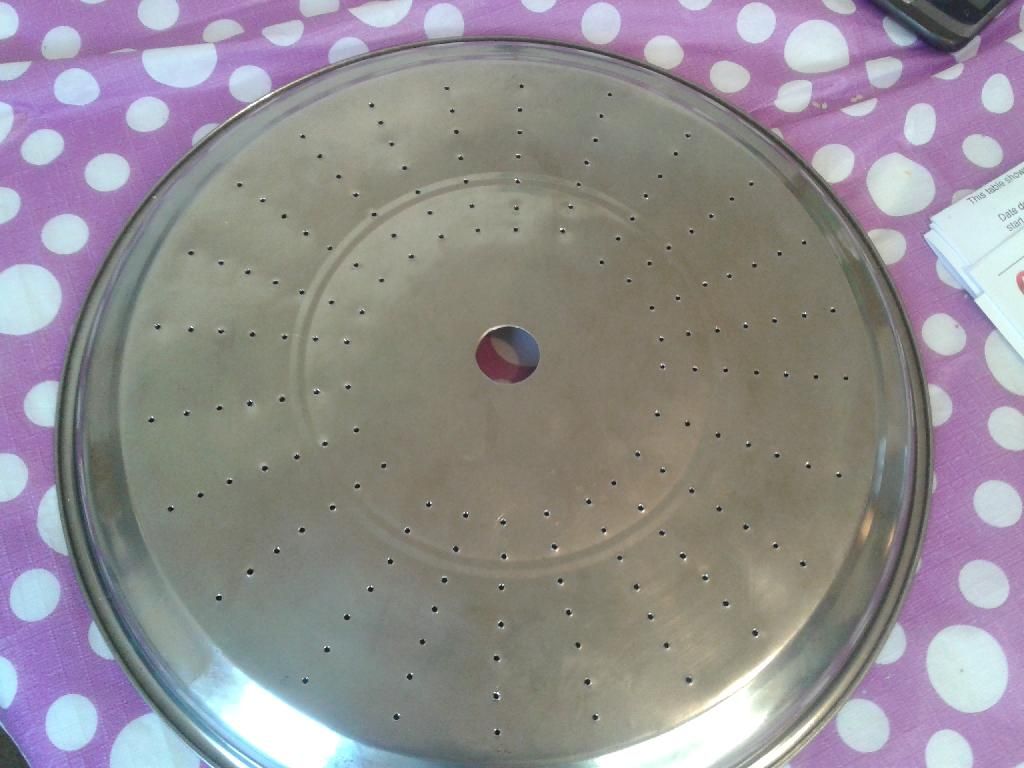

I've had an idea to make a different filter similar to the domed false bottom in my mash tun. From a stainless tray with holes drilled in it. A tank connector and elbow with a piece of pipe to the tap outlet. Any body use similar or think it would work? Thanks
[URL=http://s1085.photobucket.com/user/dan_b ... 4.jpg.html][IMG]http://i1085.photobucket.com/albums/j42 ... 154044.jpg[/IMG][/URL]

SiHoltye

Re: hop filter

Post by SiHoltye » Mon Feb 17, 2014 11:21 pm

You may want to check out items 10, 11, or 12 from this page:
http://www.the-home-brew-shop.co.uk/cgi ... PR=-1&TB=A
Work great for me. Also I limit myself to 50% pellet max in any recipe so the whole hops can filter most pellets/break successfully.

danb

Re: hop filter

Post by danb » Tue Feb 18, 2014 12:48 am

I have number 11 in my mash run,that's where I got the idea. I'll drill more holes tomorrow and use it next time, see how it goes.

danb

Re: hop filter

Post by danb » Wed Feb 19, 2014 8:15 pm

Done and fitted with 200ml dead space.
